Hand Sanitizer transfer pump
Hand sanitizer is the product of a mixture of anhydrous alcohol, derived from sugar and alcohol plants, polymer carbon, glycerin and vitamin E. All these fluids are added to a reactor tank and mixed until they form the alcohol in gel in the form we find in the markets. To transfer the gel from the reactor tank, where the mixture was made, to a storage tank and also from the storage tank to the filing machine, it is necessary to use a Positive displacement pump. Positive displacement pump can only be performed well at this stage due to high viscosity which ranges from 65,000 to 110,000 cP.
Bonve sanitary lobe pumps are ideally suited to the transfer of Hand Sanitizer due to sanitary structure and low shear flow characteristics. We name the pump as Hand Sanitizer transfer pump. The pump also allows to work with #ATEX conditions. We select the pump according to your characteristics of medium and condition of the technological requirements, bring you the best pump for your critical process, satisfied by you and your customers.
Working principle
Bonve Hand Sanitizer transfer pumps basically consist of two lobe rotors, which rotate synchronously driven by a pair of synchronous gears in the gearbox. The rotors are driven by the main shaft and sub-shaft to rotate in a synchronous reverse direction, which changes the pump capacity, builds up high vacuum and discharge pressure, thus an efficient pumping is formed. Gap is kept between the rotors and between the pump casing, no friction, long life, no damage, no physical and chemical reaction to the pumped products.

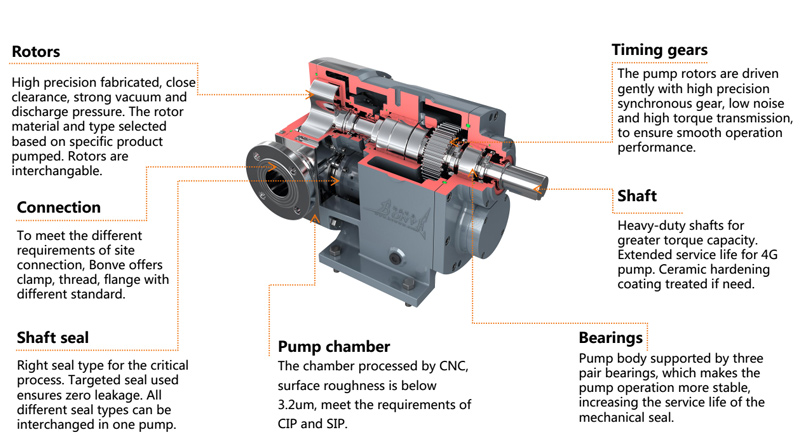

Sturcture features
Installation types
To meet the different requirements of site installation, Bonve designs a variety of pump structure as below. We also can make as per your request.
Technical parameters
|
Model |
Displacement |
RPM |
Normal Flow |
Dis. Pre. |
Power |
Port size(mm) |
|
|
|
(L/r) |
(r/min) |
(M³/h) |
(Mpa) |
(kW) |
Stand. |
Enlarged |
|
25BV12-05 |
0.06 |
10-1000 |
0-0.5 |
0-1.2 |
0.37-1.1 |
15 |
25 |
|
40BV12-2 |
0.15 |
10-1000 |
0-2 |
0-1.2 |
0.75-2.2 |
25 |
40 |
|
50BV12-5 |
0.32 |
10-800 |
0-5 |
0-1.2 |
1.5-4 |
40 |
50 |
|
65BV12-10 |
0.65 |
10-600 |
0-10 |
0-1.2 |
2.2-7.5 |
50 |
65 |
|
80BV12-20 |
1.74 |
10-500 |
0-20 |
0-1.2 |
4-15 |
65 |
80 |
|
90BV12-30 |
2.60 |
10-500 |
0-30 |
0-1.2 |
5.5-22 |
80 |
100 |
|
100BV12-40 |
3.65 |
10-500 |
0-40 |
0-1.2 |
7.5-30 |
80 |
100 |
|
125BV12-50 |
4.60 |
10-500 |
0-50 |
0-1.2 |
7.5-37 |
100 |
125 |
|
140BV12-70 |
6.10 |
10-500 |
0-70 |
0-1.2 |
11-45 |
125 |
150 |
|
150BV12-80 |
7.63 |
10-500 |
0-80 |
0-1.2 |
11-55 |
125 |
150 |
|
200BV12-120 |
11.56 |
10-400 |
0-120 |
0-1.2 |
15-75 |
150 |
200 |
|
250BV12-150 |
14.22 |
10-400 |
0-150 |
0-1.2 |
18.5-90 |
150 |
250 |
|
300BV12-200 |
20.80 |
10-300 |
0-200 |
0-1.2 |
22-110 |
200 |
300 |
|
350BV12-300 |
32.60 |
10-250 |
0-300 |
0-1.2 |
45-160 |
300 |
350 |
|
400BV12-350 |
50.40 |
10-250 |
0-350 |
0-1.2 |
55-200 |
350 |
400 |
Note:
1. Tested medium: water. Your liquid's density, viscosity and temperature are necessary to supply when choose the pump.
2. Speed, flow rate, electrical power and pressure will be varified according to different liquid properties.
3. Port size can be changed as needed.
4. Bonve reserves the right to change specifications without prior notification.
Selection guideline
|
Pls fill in this table and send to cathy@bonvepumps.con for a model selection |
|
Liquid name:___________ |
|
Viscosity:_______cp Density:_______ Temperature:_____℃ PH value:________ |
|
Solid content:_______ Max. size of particle:_______ |
|
Capacity: Max. required__________ L/H Working required__________ L/H |
|
Discharge pressure: Max. required__________Mpa Working required__________ Mpa |
|
Connection type required: Thread [ ] Clamp [ ] |
|
Installation type: Fixed [ ] Movable [ ] |
|
Voltage:____ V Frequency: _____Hz |
|
Liquid contact material: SS304 [ ] 316 [ ] 316L [ ] |
|
Special request_____________________________________ |
|
Order qty. |
