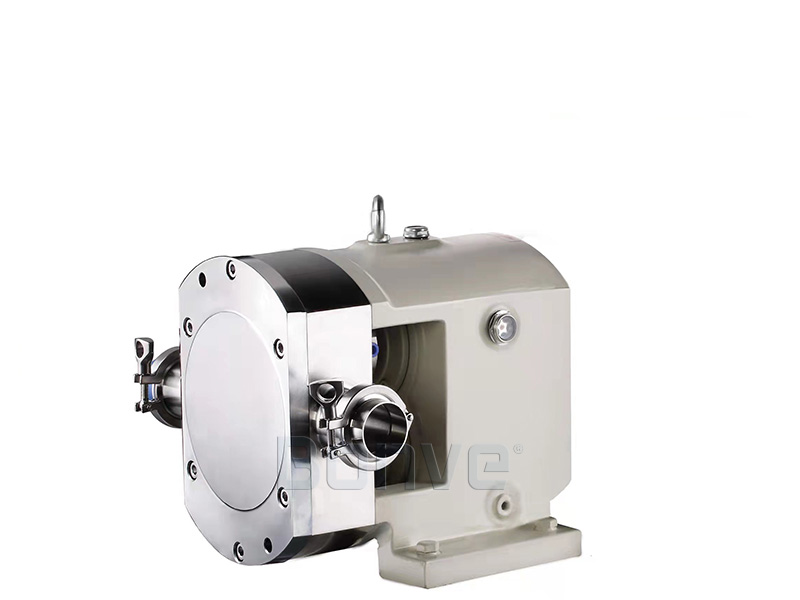

Sanitary bare shaft lobe pump

Bare shaft pumps are pumps that require no drive and range in size from 1" to 10". The flow range is 0.05-50.4L/r. The first choice in pump family to transfer the liquid which has high viscosity, high denstiy, high solid and strong corrosion. Protect the original product without damage.
Inquiry Now
Products Details

Bonve sanitary bare shaft lobe pump are self-priming, valveless, positive displacement pumps. With the characteristics of low rotation speed and high output torque, pump shows his talents to transfer high viscosity liquid products. Its unique working principle works with a strong drive system, ensure that the pump can output a strong driving torque at low speed, can guarantee continuous, non-stagnant transferring, and ensure that the transferred material not damage, viscosity can be as high as 1500000CP.



Working principle


Bonve sanitary bare shaft lobe pump


Bi-wing rotor diagram



Tri-lobe rotors diagram

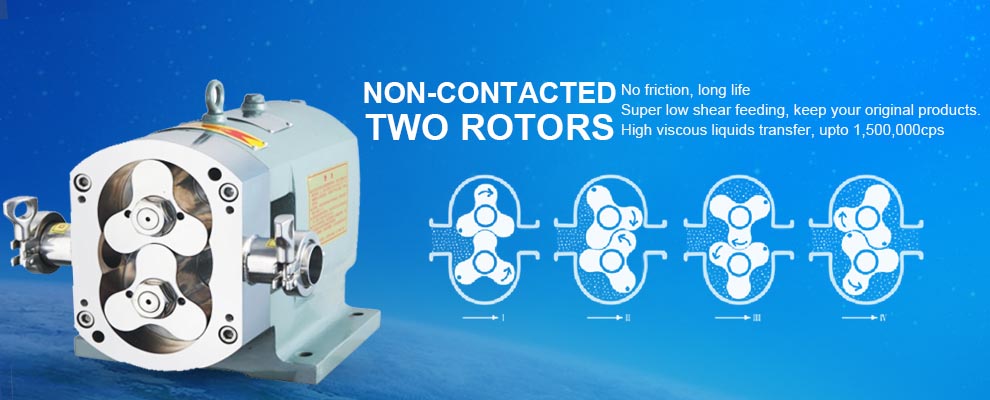

The even rotation of the rotor pair creates a vacuum on the priming side of the pump, which can be defined by the direction of rotation of the drive. This vacuum draws the liquid into the pump chamber. With further rotation, the pumped medium is conveyed past the pump wall into the pressure area. Up to six chamber charges are displaced with each drive rotation– depending on the rotor type. When the rotor is at a standstill, the pump seals off almost completely.


Bare shaft pump types





Structure diagram



Rotor types

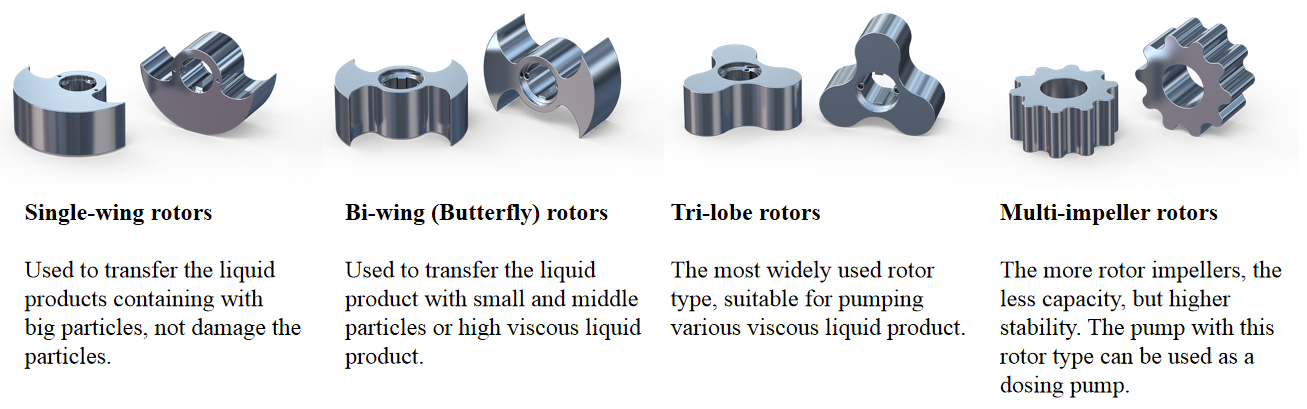

According to the different medium, Bonve rotor designed has Single-wing, Double-wing, Tri-lobe, and Multi-impeller type, and all of these rotors can be interchanged in one pump.

Seal types

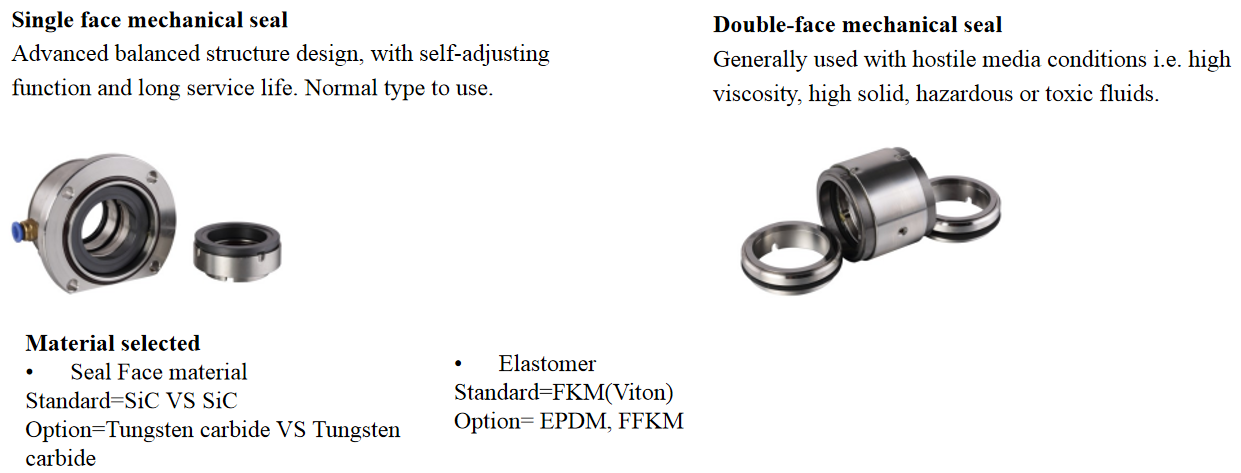

According to the different characteristics of the medium, Bonve offers the mechanical seal with different material and structure. The normal types used are single face and double-face.


Applications


Beverage

Beer, Carbonated, Soft Drinks, Coffee Liquor, Fruit Juice Concentrates, Milk Drinks, Sugar Solutions, Wine, Yeast Slurries


Confectionery


Biscuit Cream, Caramel, Chocolate, Cocoa Butter, Cocoa Mass, Condensed Milk, Fat, Fondant, Glucose, High-Boiled Sugar Syrup, Jellies

Dairy

Butter, Cheese, Cream, Egg, Ice Cream, Milk, Quarg, Whey, Yogurt

Pharmaceuticals

Blood, Cell Cultures, Enzymes, Ointments, Protein Solutions, Syrups

Foods

Additives, Baby Food, Edible Oils, Fruit Puree, Meat Chunks, Jam, Petfood, Sauces, Soups, Toppings

Sugar

Glucose, High / Low Green Syrup, Liquid Sugar, Magma, Massecuite, Molasses, Sugar Syrup, Thick Juice, Treacle


Pump Technical information at glance


Performance

• Flow rate up to approx. 500,000 l/h

• Operation pressure up to 15 bar

• Suction head up to 9 mWC

• Product Viscosity: Up to 1,000,000 mPas

• Temperature Resistance: up to 250°C

• PH: 1-14

Design Structure

• Rotor type: Single-wing Rotors, Bi-wing(Butterfly)Rotors, Tri-lobe Rotors, Multi-impeller Rotors

• Seal type: Single-face Balanced Mechanical Seal, Double-face Water-cooled Machine Seal, Metal Bellows Mechanical Seal

• Flow direction: left↔ right, up↔ down

• Port connection: Clamp, thread and flange in different standards

• Installation type: Fixed, fixed with adjustable feet, mobile

• Pump Colors: Blue, Grey, White

• Heating or cooling jacket as per request

• Driving type: Fixed speed geared motor, variable speed geared motor, , Further materials on request

Materials

• Pump housing and cover: stainless steel AISI 316, 316L

• Mechanical Shaft Seals: Tungsten carbide, Silicon carbide, Further materials on request

Sealing Materials of O-rings: Viton, EPDM, Further materials on request


Technical Parameters


Model
25BV12-05
40BV12-2
50BV12-5
65BV12-10
80BV12-20
90BV12-30
100BV12-40
125BV12-50
140BV12-70 150BV12-80
200BV12-120

Displace

-ment

(L/r)

0.06

0.15

0.32 0.65 1.74 2.60 3.65 4.60 6.10 7.63 11.56

Port size

(mm)

25

40

50 65 80 100 100 125 150 150 200

Max Pre.

(Mpa)

1.2

1.2

1.2
1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2

Max Flow

(m³/h)

3.6

9

15.36 23.4 52.2 78 109.50 138 183 228.9 277.44

Max RPM

(r/min)

1000

1000

800 600 500 500 500 500 500 500 400

Note:
1. Tested medium: water. Your liquid's density, viscosity and temperature are necessary to supply when choose the pump.
2. Speed, flow rate, electrical power and pressure will be varified according to different liquid properties.
3. Port size can be changed as needed.


Contact us


Bonve is the leading Bare shaft lobe pump manufacturer in China. It introduces advanced production equipment and produces Bare shaft lobe pump of different specifications. For more information, please contact us.

Email: cathy@bonvepumps.com

Tel : 0086-574-87769810

Mobile/whatsapp/wechat : 0086-13616639068


Get Free Inquiry Now

We will contact you as soon as possible!

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
