Bonve Sanitary Rotary Lobe Pump – The Ultimate Solution for Processing High-Viscosity Peanut ButterHot sauce production often involves heating, blending, cooking and filling. During these steps, the product viscosity can change as temperature changes. Chili, tomato or vegetable particles may also affect the flow resistance and the required pump configuration.
An unsuitable pump may create excessive shear, entrain air or deliver an unstable flow to the filling machine. High temperature can also place additional demands on the mechanical seal, elastomer and product-contact components.
A sanitary rotary lobe pump provides positive displacement transfer with adjustable speed. This allows the operator to match the pump output to the sauce condition, tank level, pipeline resistance and filling-line demand.
Main Challenges When Pumping Hot Sauce
Sauce viscosity may change significantly during heating cooling and holding.
Chili, tomato, garlic, onion or vegetable particles may require a suitable rotor and clearance configuration.
Excessive pump speed can increase aeration, foaming and unnecessary product stress.
High-temperature operation requires application-specific mechanical seal and elastomer selection.
Thick sauces and pastes may require sufficient suction conditions and properly sized inlet piping.
Unstable discharge flow can affect filling accuracy and create pressure fluctuations in the transfer line.

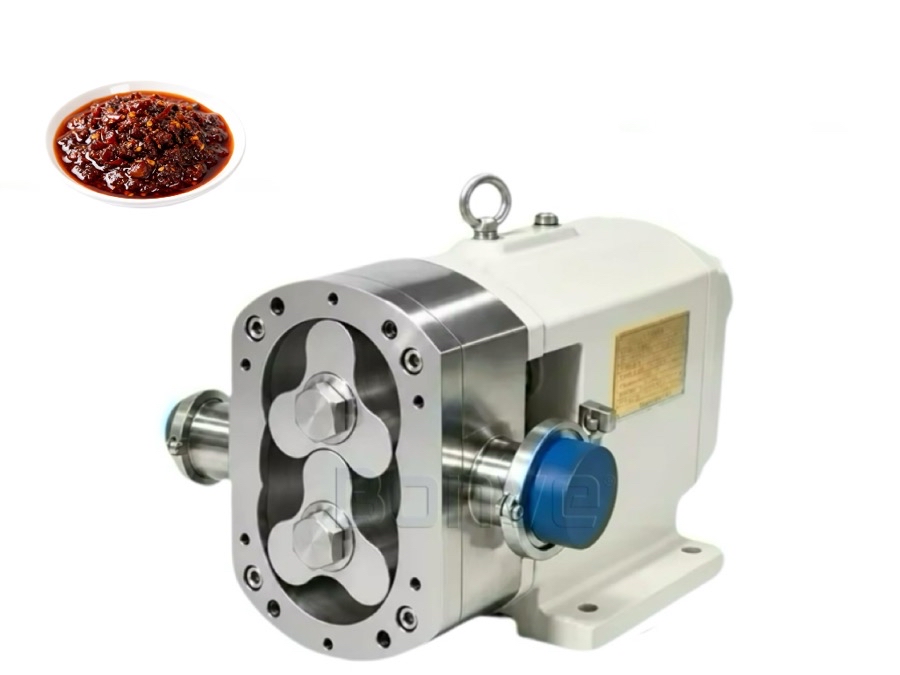

Rotary Lobe Pump Solution for Hot Sauce Transfer
Controlled Positive Displacement Transfer
The rotary lobe pump transfers product by moving a defined volume with each rotor revolution. With a variable-frequency drive, the pump speed can be adjusted for different sauce viscosities, temperatures, tank levels and filling rates.
Low-Shear Handling for Viscous Sauces
The non-contacting rotor design maintains clearance between the rotors and pump casing. When operated at a suitable speed, the pump provides gentle transfer and helps reduce unnecessary shear and aeration in hot sauce, ketchup, tomato paste and other viscous food products.
Application-Specific High-Temperature Configuration
For hot sauce applications, mechanical seal and elastomer materials should be selected according to the actual operating temperature, sauce composition, acidity, solids content and cleaning conditions. BONVE can review these conditions before finalizing the pump configuration.
Hygienic Product-Contact Path
The pump can be configured with stainless steel product-contact components, sanitary connections and suitable seal arrangements for food processing. CIP-compatible product-contact paths and optional SIP arrangements can be reviewed according to the process requirements.
Typical Hot Sauce Applications
Hot sauce transfer from cooking kettle to storage tank
About Bonve Rotary Lobe Pump
Bonve Rotary Lobe Pump is A Reliable Choice for Fluid Transfer Across Industries.Whether it’s highly corrosive liquids in the food
industry, viscous materials with solid particles in the cehmical sector, or fluids with diverse properties in other fields—Bonve Rotary Lobe Pumps handle them all with ease. Specifically designed for over 3,000 types of fluids, they enable efficient transfer of media with varying viscosities and solid contents, making them widely suitable for needs across different industries.
What’s more, Bonve remains committed to technological innovation. Today, its rotary lobe pumps have been upgraded to the 4th generation. The new-generation products feature further optimized core performance, which significantly extends the pump’s service life—helping you reduce equipment replacement costs and ensure stable production operations.
Interchangeable
Interchangeable rotors, one pump multi-purpose.
Targeted seal for specific application, ensure zero leakage.
Easy maintenance
Compact structure, easy assembling and disassembling
Maintenance in place, easy cleaning, CIPable and SIPable.
Few wearing parts, low maintenance.
Long life
All main parts proceed by CNC, high precision fabrication.
No contact between the rotors, rotors and pump chamber.
Six bearings with separate arrangement, high balance.
Adjustable seal ring extends the shaft life.
Axis key synchronous adjustment, no rotor collision problem.
Working Principle
Bonve lobe pumps basically consist of two lobe rotors, which rotate synchronously driven by a pair of synchronous gears in the gearbox. The rotors are driven by the main shaft and sub-shaft to rotate in a synchronous reverse direction, which changes the pump capacity, builds up high vacuum and discharge pressure, thus an efficient pumping is formed. Gap is kept between the rotors and between the pump casing, no friction, long life, no damage, no physical and chemical reaction to the pumped products.
Bi-wing rotor diagram
Tri-lobe rotors diagram
Main Parts of the Complete Pump
Bonve complete pumps are usually composed of bare shaft pump, coupling and its guard, geared motor and baseplae. With your order, bare shaft pump or complete pump is supplied.
Bare Shaft Pump Structure
Based on the port direction, we have the pump with horizontal port and vertical port to meet your site installation.
Structure Details
Complete Pump Types
Technical Parameters
|
Model |
Displace -ment |
RPM |
Flow |
Dis. Pre. |
Power |
Vacuum |
Port size |
Max viscosity |
|
|
(L/r) |
(r/min) |
(m³/h) |
(Mpa) |
(kW) |
(Mpa) |
(mm) |
(cp) |
|
25BV12-05 |
0.06 |
10-1000 |
0-0.5 |
0-1.2 |
0.37-1.1 |
-0.080 |
25 |
1,500,000 |
|
40BV12-2 |
0.15 |
10-1000 |
0-2 |
0-1.2 |
0.75-2.2 |
-0.080 |
40 |
1,500,000 |
|
50BV12-5 |
0.32 |
10-800 |
0-5 |
0-1.2 |
1.5-4 |
-0.085 |
50 |
1,500,000 |
|
65BV12-10 |
0.65 |
10-600 |
0-10 |
0-1.2 |
2.2-7.5 |
-0.085 |
65 |
1,500,000 |
|
80BV12-20 |
1.74 |
10-500 |
0-20 |
0-1.2 |
4-15 |
-0.095 |
80 |
1,500,000 |
|
90BV12-30 |
2.60 |
10-500 |
0-30 |
0-1.2 |
5.5-22 |
-0.095 |
100 |
1,500,000 |
|
100BV12-40 |
3.65 |
10-500 |
0-40 |
0-1.2 |
7.5-30 |
-0.095 |
100 |
1,500,000 |
|
125BV12-50 |
4.60 |
10-500 |
0-50 |
0-1.2 |
7.5-37 |
-0.095 |
125 |
1,500,000 |
|
140BV12-70 |
6.10 |
10-500 |
0-70 |
0-1.2 |
11-45 |
-0.095 |
150 |
1,500,000 |
|
150BV12-80 |
7.63 |
10-500 |
0-80 |
0-1.2 |
11-55 |
-0.095 |
150 |
1,500,000 |
|
200BV12-120 |
11.56 |
10-400 |
0-120 |
0-1.2 |
15-75 |
-0.095 |
200 |
1,500,000 |
|
250BV12-150 |
14.22 |
10-400 |
0-150 |
0-1.2 |
18.5-90 |
-0.095 |
250 |
1,500,000 |
|
300BV12-200 |
20.80 |
10-300 |
0-200 |
0-1.2 |
22-110 |
-0.095 |
300 |
1,500,000 |
|
350BV12-300 |
32.60 |
10-250 |
0-300 |
0-1.2 |
45-160 |
-0.095 |
350 |
1,500,000 |
|
400BV12-400 |
50.40 |
10-250 |
0-400 |
0-1.2 |
55-200 |
-0.095 |
400 |
1,500,000 |
Note:
1. Tested medium: water.
2. Speed, flow rate, electrical power and pressure will be varified according to different product properties.
Selection Guidelines
|
Your Industry |
|
||
|
About pump medium |
Name: |
||
|
Density (g/m³): |
|||
|
Viscosity (mPa.s): |
|||
|
Temperature (℃): |
|||
|
PH value: |
|||
|
Solid content (%): |
|||
|
Solid size (mm): |
|||
|
Suction side |
Pressure: Positive ( ) bar; Negtive ( ) bar |
How high (m): |
|
|
Suction pipe length (m): |
Diameter (mm): |
||
|
Bends (Pcs): |
T-piece (Pcs): |
Valves (Pcs): |
|
|
Discharge side |
Pressure (Mpa): |
||
|
Vertical delivery pipe length (m): Total delivery pipe length (m): |
Diameter (mm): |
||
|
Bends (Pcs): |
T-piece (Pcs): |
Valves (Pcs): |
|
|
Required flow rate (L/H) |
Operating flow: |
Max. flow: |
|
|
Pump material required |
SS304 ( ) SS316 ( ) SS316L ( ) Duplex stainless steel ( ) |
||
|
Motor required |
Phase: Single ( ) Three ( ) |
Voltage (V): |
Frequency (Hz): |
|
IP grade: |
Energy efficiency: |
Anti-explosive: |
|
|
Installation type |
Fixed ( ) |
Movable ( ) |
Fixed with adjusting feet ( ) |
|
Others |
|
||
