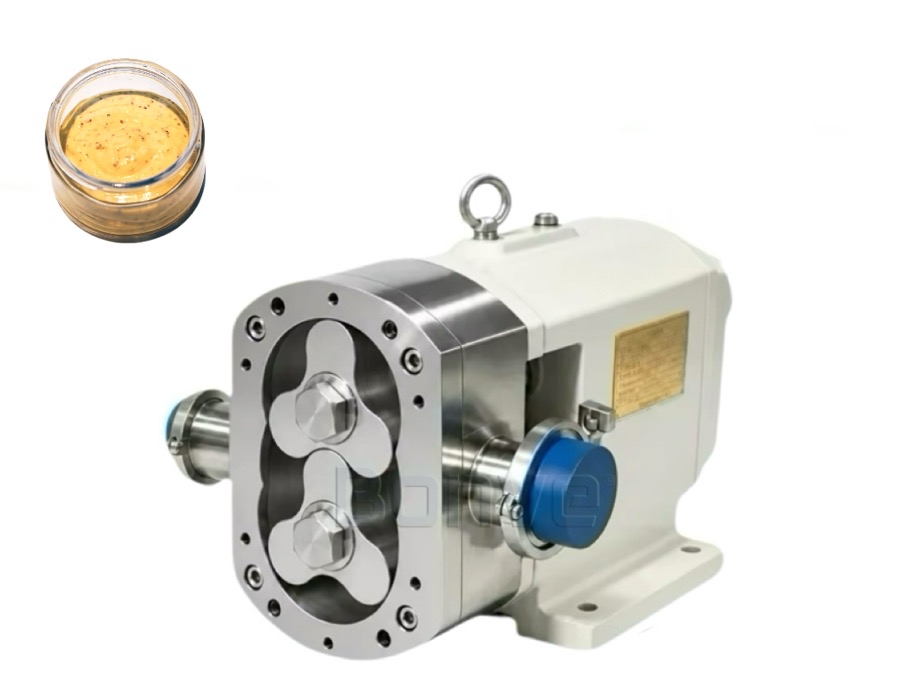

Food Grade Mayonnaise Transfer Pump
Transporting mayonnaise is a high-stakes process involving a shear-sensitive, oil-in-water emulsion. Unlike simpler fluids, mayonnaise requires a pump that can manage high viscosity while exerting minimal mechanical stress. Any excessive friction or heat during transfer can trigger irreversible oil separation, destroying the product's texture and shelf-life.
Mayonnaise is a complex Oil-in-Water (O/W) emulsion that requires specific handling due to its unique physical and chemical properties:
- High Viscosity & Thixotropy: Mayonnaise is a thick, semi-solid paste. It is thixotropic, meaning it becomes less viscous under stress but must regain its "stiff peak" and body once in the final container.
- Shear Sensitivity: The suspension of oil droplets within the aqueous phase is delicate. Excessive mechanical force can destabilize the molecular bond, leading to product failure.
- Biological Sensitivity: Containing eggs and proteins, it is a highly sensitive medium that requires a sterile environment to prevent spoilage and extend shelf-life.
-
Non-Newtonian Behavior: It does not flow like water; it requires positive displacement to move through pipelines without losing its structural integrity.
Transportation Challenges & Industry Pain Points
The mayonnaise industry faces several critical "pain points" during the transfer process that can impact profitability and brand reputation:
- Emulsion Breaking (Oil Separation): The biggest risk is "breaking" the emulsion. Inefficient pumping triggers syneresis, causing the oil to separate from the solids, resulting in a thin, unmarketable liquid.
- Texture Degradation: High-speed pumps often exert too much shear, which permanently thins the mayonnaise, causing it to lose the rich mouthfeel that consumers expect.
- Microbial Contamination: Because of the egg content, any "dead zones" or gaps inside the pump can harbor bacteria. Incomplete sterilization during CIP cycles is a major risk for food safety.
- Air Incorporation & Oxidation: Standard pumps can introduce air into the paste, leading to foam generation. This causes filling inaccuracies and accelerates lipid oxidation, which turns the sauce rancid.
-
Pressure vs. Speed Conflict: Moving thick mayonnaise through heat exchangers or long pipes requires high pressure, but traditional pumps often increase speed to achieve this, which destroys the product.
BONVE’s Targeted Solutions
Bonve has developed a specialized line of Sanitary Rotary Lobe Pumps designed to neutralize these specific industry challenges:
- Gentle, Low-Shear Transfer: Our optimized rotor geometry provides large internal cavities, allowing the mayonnaise to pass through at low speeds. This preserves the emulsion stability and ensures the final product maintains its thick, creamy texture.
- Superior CIP/SIP Construction: The pump is built with SS316L stainless steel and features a gap-free, dead-zone-free interior with mirror-polished surfaces (Ra < 0.8μm). This ensures 100% effective Clean-in-Place and Sterilize-in-Place cycles, eliminating microbial risks.
- Vacuum-Tight Sealing: We utilize high-performance mechanical seals specifically designed for sticky food pastes. This prevents air entrainment and oxidation, protecting the flavor and ensuring consistent filling weights.
- High Volumetric Efficiency: Bonve pumps provide powerful positive displacement, capable of handling high discharge pressures at low RPMs. This moves the thickest mayonnaise effortlessly without generating heat or shear.
- Factory-Direct Reliability: By working directly with Bonve, you receive customized engineering support and a pump built for long-term durability with minimal maintenance costs.
Interchangeable
1.Interchangeable rotors, one pump multi-purpose.
2.Targeted seal for specific application, ensure zero leakage.
Easy maintenance
1.Compact structure, easy assembling and disassembling.
2.Maintenance in place, easy cleaning. CIP able and SIP able.
3.Few wearing parts, low maintenance.
Long life
1.All main parts proceed by CNC, high precision fabrication.
2.No contact between the rotors, rotors and pump chamber.
3.six bearings with separate arrangement, high balance.
4.Adjustable seal ring extends the shaft life.
5.Axis key synchronous adjustment, no rotor collision problem.
Bonve has an advantage over lobe pump that no other company can match.
1.Rotor:The error of the rotors processed by CNC is extremely small. The unique rotor perfectly seals the inlet and outlet of the pump. The vacuum degree of the pump is up to -0.095MPA. The rotor material and type can be selected according to the characteristics of the pumped product.
2.Shaft: The transmission shaft is processed by CNC machining center, which has characteristics of high precision, high bending strength and strong wear resistance.
3.Pump cavity: The pump cavity is sealed by a pump cover that can be opened quickly, enabling quick maintenance of the pump. The pump body is processed by CNC machining.
4.Gears:High-precision, High-Standard synchronous gears have good meshing, smooth transmission, low noise, and excellent bearing capacity.
5.Mechanical seal:The seal material and type are selected according to the characteristices of the pumped product, to ensure zero leakage, no pollution, and more environmental production.
6.Bearings: Six bearings arranged in a separate arrangement increase the concentricity of the pump operation, enhance the bearing capacity of the shaft and make the pump running more stable, thereby increasing the service life of the shaft and the mechanical seal.
7.Gear box: The gear box is processed by CNC, with high precision, high concentricity and strong versatility.
8.Spindle:We use splines the bearings and spindle, makes the pump less likely to slip. The high-precision spline makes the pump run more smoothly, and the service life is much higher than that of its peers.
More applications
In addition to mayonnaise transfer applications,Bonve stainless steel lobe pumps are widely used in the food, dairy, confectionery, beverage, and wine industries. Typical transfer media include: condensed milk, cheese, mayonnaise, yogurt, honey, syrup, sucrose, ketchup, tomato paste, butter, concentrated juice, jam, ice cream, yeast slurry, meat paste, jelly, condiments, soy protein, various beverages, and wine.
Working Principle
Bonve lobe pumps basically consist of two lobe rotors, which rotate synchronously driven by a pair of synchronous gears in the gearbox. The rotors are driven by the main shaft and sub-shaft to rotate in a synchronous reverse direction, which changes the pump capacity, builds up high vacuum and discharge pressure, thus an efficient pumping is formed. Gap is kept between the rotors and between the pump casing, no friction, long life, no damage, no physical and chemical reaction to the pumped products.
Bi-wing rotor diagram
Tri-lobe rotors diagram
Main Parts of the Complete Pump
Bonve complete pumps are usually composed of bare shaft pump, coupling and its guard, geared motor and baseplae. With your order, bare shaft pump or complete pump is supplied.
Bare Shaft Pump Structure
Based on the port direction, we have the pump with horizontal port and vertical port to meet your site installation.
Structure Details
Complete Pump Types
Technical Parameters
|
Model |
Displace -ment |
RPM |
Flow |
Dis. Pre. |
Power |
Vacuum |
Port size |
Max viscosity |
|
|
(L/r) |
(r/min) |
(m³/h) |
(Mpa) |
(kW) |
(Mpa) |
(mm) |
(cp) |
|
25BV12-05 |
0.06 |
10-1000 |
0-0.5 |
0-1.2 |
0.37-1.1 |
-0.080 |
25 |
1,500,000 |
|
40BV12-2 |
0.15 |
10-1000 |
0-2 |
0-1.2 |
0.75-2.2 |
-0.080 |
40 |
1,500,000 |
|
50BV12-5 |
0.32 |
10-800 |
0-5 |
0-1.2 |
1.5-4 |
-0.085 |
50 |
1,500,000 |
|
65BV12-10 |
0.65 |
10-600 |
0-10 |
0-1.2 |
2.2-7.5 |
-0.085 |
65 |
1,500,000 |
|
80BV12-20 |
1.74 |
10-500 |
0-20 |
0-1.2 |
4-15 |
-0.095 |
80 |
1,500,000 |
|
90BV12-30 |
2.60 |
10-500 |
0-30 |
0-1.2 |
5.5-22 |
-0.095 |
100 |
1,500,000 |
|
100BV12-40 |
3.65 |
10-500 |
0-40 |
0-1.2 |
7.5-30 |
-0.095 |
100 |
1,500,000 |
|
125BV12-50 |
4.60 |
10-500 |
0-50 |
0-1.2 |
7.5-37 |
-0.095 |
125 |
1,500,000 |
|
140BV12-70 |
6.10 |
10-500 |
0-70 |
0-1.2 |
11-45 |
-0.095 |
150 |
1,500,000 |
|
150BV12-80 |
7.63 |
10-500 |
0-80 |
0-1.2 |
11-55 |
-0.095 |
150 |
1,500,000 |
|
200BV12-120 |
11.56 |
10-400 |
0-120 |
0-1.2 |
15-75 |
-0.095 |
200 |
1,500,000 |
|
250BV12-150 |
14.22 |
10-400 |
0-150 |
0-1.2 |
18.5-90 |
-0.095 |
250 |
1,500,000 |
|
300BV12-200 |
20.80 |
10-300 |
0-200 |
0-1.2 |
22-110 |
-0.095 |
300 |
1,500,000 |
|
350BV12-300 |
32.60 |
10-250 |
0-300 |
0-1.2 |
45-160 |
-0.095 |
350 |
1,500,000 |
|
400BV12-400 |
50.40 |
10-250 |
0-400 |
0-1.2 |
55-200 |
-0.095 |
400 |
1,500,000 |
Note:
1. Tested medium: water.
2. Speed, flow rate, electrical power and pressure will be varified according to different product properties.
Selection Guidelines
|
Your Industry |
|
||
|
About pump medium |
Name: |
||
|
Density (g/m³): |
|||
|
Viscosity (mPa.s): |
|||
|
Temperature (℃): |
|||
|
PH value: |
|||
|
Solid content (%): |
|||
|
Solid size (mm): |
|||
|
Suction side |
Pressure: Positive ( ) bar; Negtive ( ) bar |
How high (m): |
|
|
Suction pipe length (m): |
Diameter (mm): |
||
|
Bends (Pcs): |
T-piece (Pcs): |
Valves (Pcs): |
|
|
Discharge side |
Pressure (Mpa): |
||
|
Vertical delivery pipe length (m): Total delivery pipe length (m): |
Diameter (mm): |
||
|
Bends (Pcs): |
T-piece (Pcs): |
Valves (Pcs): |
|
|
Required flow rate (L/H) |
Operating flow: |
Max. flow: |
|
|
Pump material required |
SS304 ( ) SS316 ( ) SS316L ( ) Duplex stainless steel ( ) |
||
|
Motor required |
Phase: Single ( ) Three ( ) |
Voltage (V): |
Frequency (Hz): |
|
IP grade: |
Energy efficiency: |
Anti-explosive: |
|
|
Installation type |
Fixed ( ) |
Movable ( ) |
Fixed with adjusting feet ( ) |
|
Others |
|
||
8 steps for your guideline to select Bonve pump
1. Your product name
2. Product viscosity in pump, line and at rest
3. Are there any solids present, if so what are they and percentage concentration
4. Specific gravity
5. Capacity required
6. Pumping temperature
7. Discharge pressure or sketch of pipework system
8. Suction pressure or sketch of pipework system
About us
BONVE is a Chinese leading manufacturer in ROTARY LOBE PUMPS and HOMOGENIZER MIXERS. Providing its customers with customized pumping and mixing solutions and solving their problems during the production.
Bonve pumps and mixers are widely used in food, dairy, beverages, chemical, pulp&paper, soaps&detergents, pharmaceuticals, pesticide, coatings etc. By 2024, Bonve served 8,000+ customers in various industries and 100,000+ pumps running in the worldwide.
Time and again companies specify Bonve pumps as the "standard" equipment for their manufacturing processed. We are looking forward to be partner with you.
Certificate
Bonve ISO9001, ISO14001, ISO45001 certificates ensure quality consistency, compliance reliability, environmental responsibility, and operational efficiency, delivering trustworthy and sustainable partnerships for our clients.
With CE and FDA certificates,Bonve pumps are globally recognized. These certificates open doors to major markets, and they're a testament to our pumps excellence for you.
How customers' comments on Bonve Lobe pump
Comment on the pumps surface finish
We worked with are-seller in food industry and they are very happy withBonve lobe pump surface smooth finish and price.
If your team is dealing with similar pain points—whether it's subpar materials, inconsistent finishes, or non-compliant equipment—let's connect. We're here to deliver the same peace of mind and performance to your operations.
Feedback on Bonve lobe pump inner structure and running
We worked withthecompanies in chemical industry and they are satisfied with our pump silent and smooth running. If you want to get rid of such usage troubles of yourexisting pumps, we are ready to provide you with the same high-value solution.
FAQ
1. Warranty Policy
Standard: 15 months from manufacturing date.
Service: Free replacement parts within 3 workdays for non-human quality issues.
Extended warranty: Available upon request (e.g., for projects).
2. Operation Guidance
Provided with full English manual (installation, operation) and training files (maintenance, troubleshooting).
Remote technical support available if needed.
3. Shipping Arrangement
Partner with reliable forwarders; support sea (standard) or air freight.
Share your nearest port/airport for CIF quotes (cost + insurance + freight).
4. Payment Terms
TT (Telegraphic Transfer) or LC (Letter of Credit).
5. Delivery Time
Bare shaft pumps: 7 workdays (standard).
Complete pumps with motor: 20 workdays (standard).
6. Packaging
Solid fumigation-free plywood cases.
7. Pre-Order Spec Confirmation
We send a spec form (flow rate, head, etc.) for confirmation; technical drawings/photos available if needed.
8. Post-Warranty Support
Paid parts (preferential prices, 3-5 workdays delivery).
Paid on-site/remote technical help; customized annual maintenance plans for long-term clients.
9. Custom Solutions
Supported: Adjust material (stainless steel/cast iron), parameters (flow rate/head), or design (vertical/mobile).
Lead time: 20-30 workdays (varies by complexity); progress updates provided.
