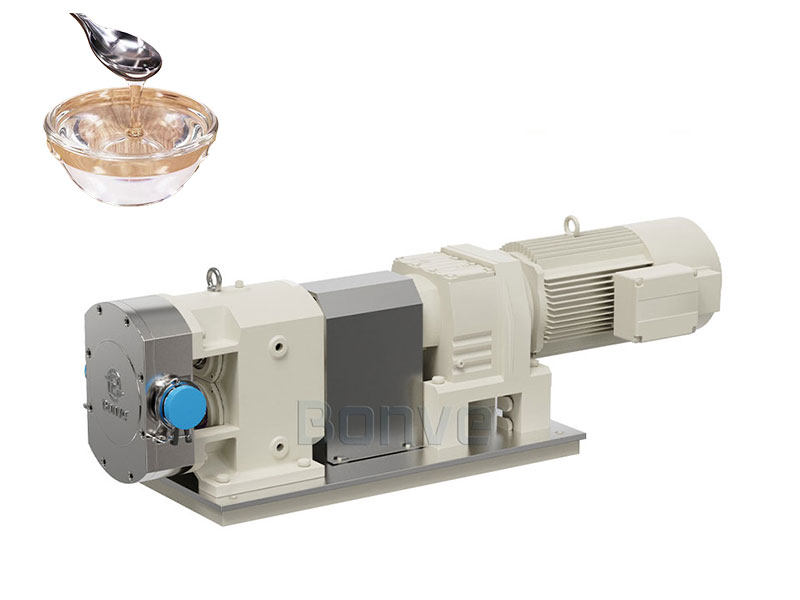

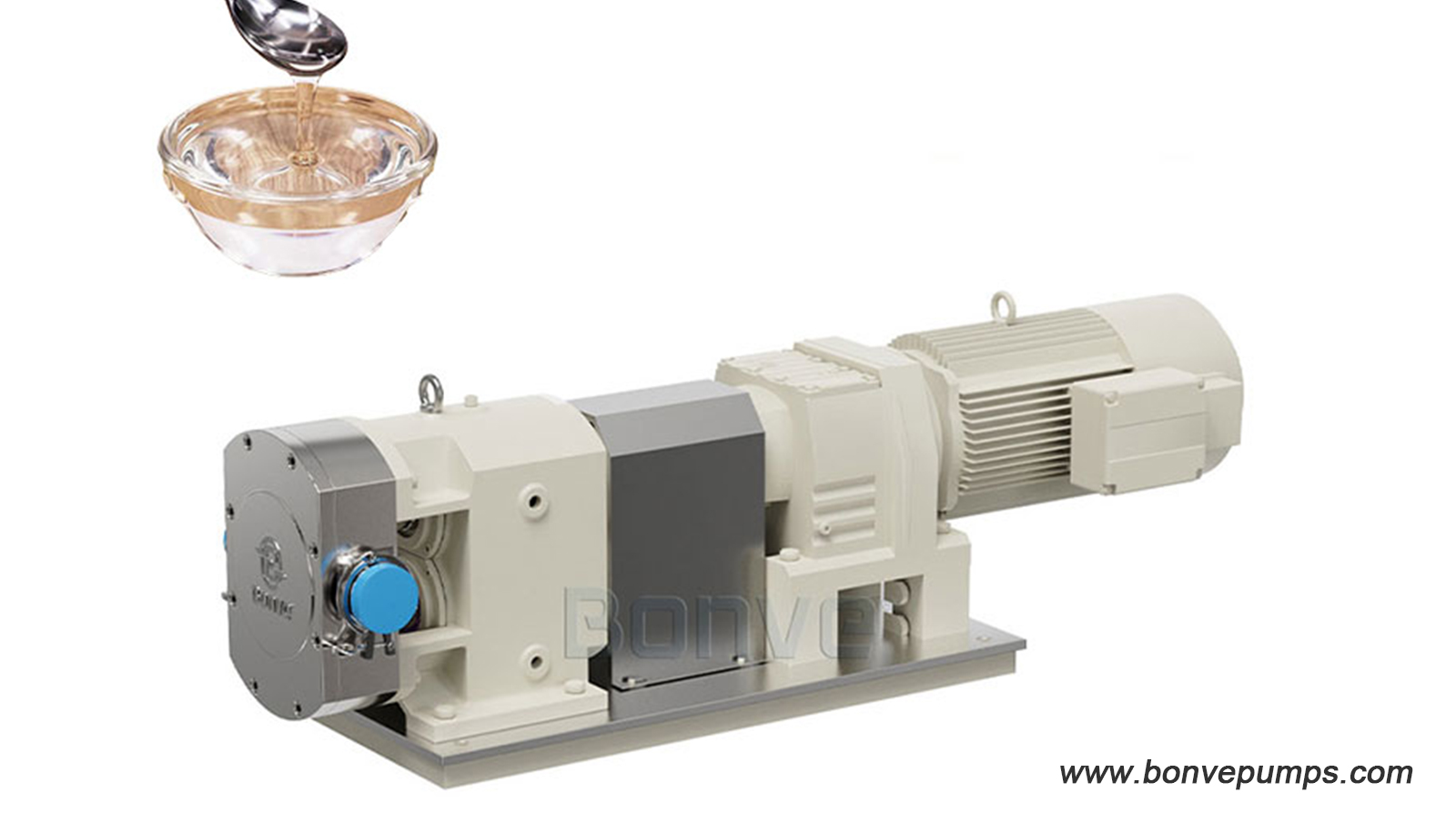

Food Grade SS316 Rotary Lobe Pumps for Beverage Drink Flavor Syrups Transfer
Bonve rotary lobe pump isn't just a pump, it's a commitment to quality.
Designed specifically for the delicate task of transferring flavor syrups, concentrates, and purees, it guarantees your product's integrity from mixing to filling.
Say goodbye to product degradation and hello to unmatched operational efficiency.
The Challenge in Beverage Drink Flavor Syrups Transfer
In the world of beverages, flavor is king. Traditional pumps can damage your most valuable ingredients through:
Shear Stress: Degrading syrups, breaking down emulsifications, and altering mouthfeel.
Flavor Scalping: Absorbing volatile flavor compounds, resulting in a less potent final product.
Aeration: Introducing air, which causes foaming and oxidation, shortening shelf life.
Inefficient Cleaning: Complex designs that harbor bacteria and cause cross-contamination.
Bonve Beverage Drink Flavor Syrups Pumping Solution
Bonve rotary lobe pump addresses this core challenge with its innovative low-speed, high-volume design. Unlike centrifugal pumps, Bonve rotary lobe technology moves product using two synchronized, non-contacting lobes. This creates a gentle, positive displacement action that lifts the Beverage Flavor Syrups rather than tearing it apart, guaranteeing that what you produce is exactly what your customer enjoys.
Bonve Rotary Lobe Pump Advantage
Designed specifically for thick, particle-laden fluids, Bonve Rotary Lobe Pump excels in beverage drink flavor syrups handling with these innovations:
1. Gentle-Flow Rotor DesignUnlike traditional gears, Bonve synchronized, non-meshing rotors "lift" the product through the pump chamber. This creates a smooth, non-pulsating, low-shear flow that protects the most sensitive concentrates, from delicate berry purees to thick tomato paste.
2. Unmatched Hygienic Construction
Constructed from premium 316L stainless steel with electropolished finishes (Ra < 0.6 µm). All product-contact surfaces comply with FDA and CE regulations. Tri-Clamp connections provide a seamless, leak-free integration into your sanitary process line.
3. Built for the Toughest Environments
The sealed, cartridge-style mechanical seal is designed for longevity and is available in various materials to handle a wide range of temperatures and pH levels. The robust drive train is engineered for high torque demands, ensuring reliability under continuous heavy load.
4. Smart & Easy Maintenance
The front-cover, quick-release design allows for rotor inspection and seal replacement in minutes without disconnecting the pump from the pipeline. This modularity drastically reduces Mean Time To Repair
Why Choose Bonve Beverage Drink Flavor Syrups Lobe Pump ?
1. Product Integrity Guarantee: Bonve primary design goal is to protect your product's quality.
2. The low-Speed, low-shear operation ensures your concentrated juice's sensory properties remain intact.
3. Proven Expertise: Over 15 years of experience in the dairy and food industry.
4. Custom Solutions: Pumps can be customized to fit your exact production line layout.
FAQ Section
-
Q: How does the low-shear design work?
A: The low-shear operation is achieved through a combination of large pumping chambers, optimized rotor profiles, and slower operating speeds compared to centrifugal pumps. This minimizes the mechanical agitation and shear forces that can damage concentrated juice's protein structure. -
Q: Are your seals compatible with hot cleaning and caustic solutions?
A: Absolutely. We offer a range of FDA-compliant seal materials (like FKM/Viton) specifically chosen to withstand high temperatures and aggressive CIP chemicals. -
Q: Do you offer custom configurations?
-
A: Yes. We can customize port sizes, surface finishes, and motor specifications to meet your exact plant layout and process requirements.
About Bonve Rotary Lobe Pump
Bonve offers the broadest range of its Rotary Lobe Pumps for food industry. As an excellent pump manufacturer, our hard technical barriers have become a powerful help for our Bonve pumps reform and innovation. So far, Bonve pumps have developed to the fourth generation and are mature.
Interchangeable
· Interchangeable rotors, one pump multi-purpose.
· Targeted seal for specific application, ensure zero leakage.
Easy maintenance
· Compact structure, easy assembling and disassembling
· Maintenance in place, easy cleaning, CIPable and SIPable.
· Few wearing parts, low maintenance.
Long life
· All main parts proceed by CNC, high precision fabrication.
· No contact between the rotors, rotors and pump chamber.
· Six bearings with separate arrangement, high balance.
· Adjustable seal ring extends the shaft life.
· Axis key synchronous adjustment, no rotor collision problem.
Working Principle
Bonve lobe pumps basically consist of two lobe rotors, which rotate synchronously driven by a pair of synchronous gears in the gearbox. The rotors are driven by the main shaft and sub-shaft to rotate in a synchronous reverse direction, which changes the pump capacity, builds up high vacuum and discharge pressure, thus an efficient pumping is formed. Gap is kept between the rotors and between the pump casing, no friction, long life, no damage, no physical and chemical reaction to the pumped products.
Bi-wing rotor diagram
Tri-lobe rotors diagram
Main Parts of the Complete Pump
Bonve complete pumps are usually composed of bare shaft pump, coupling and its guard, geared motor and baseplae. With your order, bare shaft pump or complete pump is supplied.
Bare Shaft Pump Structure
Based on the port direction, we have the pump with horizontal port and vertical port to meet your site installation.
Structure Details
Complete Pump Types
Technical Parameters
|
Model |
Displace -ment |
RPM |
Flow |
Dis. Pre. |
Power |
Vacuum |
Port size |
Max viscosity |
|
|
(L/r) |
(r/min) |
(m³/h) |
(Mpa) |
(kW) |
(Mpa) |
(mm) |
(cp) |
|
25BV12-05 |
0.06 |
10-1000 |
0-0.5 |
0-1.2 |
0.37-1.1 |
-0.080 |
25 |
1,500,000 |
|
40BV12-2 |
0.15 |
10-1000 |
0-2 |
0-1.2 |
0.75-2.2 |
-0.080 |
40 |
1,500,000 |
|
50BV12-5 |
0.32 |
10-800 |
0-5 |
0-1.2 |
1.5-4 |
-0.085 |
50 |
1,500,000 |
|
65BV12-10 |
0.65 |
10-600 |
0-10 |
0-1.2 |
2.2-7.5 |
-0.085 |
65 |
1,500,000 |
|
80BV12-20 |
1.74 |
10-500 |
0-20 |
0-1.2 |
4-15 |
-0.095 |
80 |
1,500,000 |
|
90BV12-30 |
2.60 |
10-500 |
0-30 |
0-1.2 |
5.5-22 |
-0.095 |
100 |
1,500,000 |
|
100BV12-40 |
3.65 |
10-500 |
0-40 |
0-1.2 |
7.5-30 |
-0.095 |
100 |
1,500,000 |
|
125BV12-50 |
4.60 |
10-500 |
0-50 |
0-1.2 |
7.5-37 |
-0.095 |
125 |
1,500,000 |
|
140BV12-70 |
6.10 |
10-500 |
0-70 |
0-1.2 |
11-45 |
-0.095 |
150 |
1,500,000 |
|
150BV12-80 |
7.63 |
10-500 |
0-80 |
0-1.2 |
11-55 |
-0.095 |
150 |
1,500,000 |
|
200BV12-120 |
11.56 |
10-400 |
0-120 |
0-1.2 |
15-75 |
-0.095 |
200 |
1,500,000 |
|
250BV12-150 |
14.22 |
10-400 |
0-150 |
0-1.2 |
18.5-90 |
-0.095 |
250 |
1,500,000 |
|
300BV12-200 |
20.80 |
10-300 |
0-200 |
0-1.2 |
22-110 |
-0.095 |
300 |
1,500,000 |
|
350BV12-300 |
32.60 |
10-250 |
0-300 |
0-1.2 |
45-160 |
-0.095 |
350 |
1,500,000 |
|
400BV12-400 |
50.40 |
10-250 |
0-400 |
0-1.2 |
55-200 |
-0.095 |
400 |
1,500,000 |
Note:
1. Tested medium: water.
2. Speed, flow rate, electrical power and pressure will be varified according to different product properties.
Selection Guidelines
|
Your Industry |
|
||
|
About pump medium |
Name: |
||
|
Density (g/m³): |
|||
|
Viscosity (mPa.s): |
|||
|
Temperature (℃): |
|||
|
PH value: |
|||
|
Solid content (%): |
|||
|
Solid size (mm): |
|||
|
Suction side |
Pressure: Positive ( ) bar; Negtive ( ) bar |
How high (m): |
|
|
Suction pipe length (m): |
Diameter (mm): |
||
|
Bends (Pcs): |
T-piece (Pcs): |
Valves (Pcs): |
|
|
Discharge side |
Pressure (Mpa): |
||
|
Vertical delivery pipe length (m): Total delivery pipe length (m): |
Diameter (mm): |
||
|
Bends (Pcs): |
T-piece (Pcs): |
Valves (Pcs): |
|
|
Required flow rate (L/H) |
Operating flow: |
Max. flow: |
|
|
Pump material required |
SS304 ( ) SS316 ( ) SS316L ( ) Duplex stainless steel ( ) |
||
|
Motor required |
Phase: Single ( ) Three ( ) |
Voltage (V): |
Frequency (Hz): |
|
IP grade: |
Energy efficiency: |
Anti-explosive: |
|
|
Installation type |
Fixed ( ) |
Movable ( ) |
Fixed with adjusting feet ( ) |
|
Others |
|
||
About Us
BONVE is a Chinese leading manufacturer in ROTARY LOBE PUMPS and HOMOGENIZER MIXERS. Providing its customers with customized pumping and mixing solutions and solving their problems during the production.
Bonve pumps and mixers are widely used in food, dairy, beverages, chemical, pulp&paper, soaps&detergents, pharmaceuticals, pesticide, coatings etc. By 2024, Bonve served 8,000+ customers in various industries and 100,000+ pumps running in the worldwide.
Time and again companies specify Bonve pumps as the "standard" equipment for their manufacturing processed. We are looking forward to be partner with you.
Contact Us
We welcome you to contact us for a Beverage Drink Flavor Syrup Transfer Pump solution if have any demand.
