Lobe pumps for paper chemicals

Bonve Rotary lobe pumps are to be found in numerous processes, including the Coating kitchen, at the Sizing Press and on the Coating Section; all providing gentle handling of shear sensitive media and long trouble free service. We call these lobe pumps Paper chemicals transfer pumps.
Inquiry Now
Products Details

Paper chemicals designate a group of chemicals that modify the properties of paper, which including Emulsions, Resins, Retention Aids, Sizing agent, Flocculating agent, Dry strength agent, Wet strength agent,Softening agent, Binders, Fillings, Cooked Starch, Coating Pigments, Anti-foaming agents, CMC, Polymers,Specialty Chemicals etc. These chemicals can be used to alter the paper in many ways, including changing its color and brightness, or by increasing its strength and resistance to water.



What pumps used to convey paper-making chemicals during production? Bonve Rotary lobe pumps are to be found in numerous processes, including the Coating kitchen, at the Sizing Press and on the Coating Section; all providing gentle handling of shear sensitive media and long trouble free service. We call these lobe pumps Paper chemicals transfer pump.


Paper chemicals transfer pump


Bonve pump's strength compare other pumps



  •  All the contact parts are made of stainless steel, no wearing part.
  •  Non-contacted pump head design, ability to pump abrasive media like CaCO3.
  •  No friction, long life.
  •  Low shear pumping, ability to pump sensitive media, such as latex and starch based coatings.
  •  Simple assembling and disassembling, easy to maintenance with few special tools, small space and human.
  •  High efficiency and energy-saving, low failure rate, reliable sealing and low noise.
  •  Dry running is allowed with our special designed mechanical seal.
  •  Improve your productivity and reduce cost.



Pump working principle



Bonve lobe pumps are designed based on the exploration of more than 3,000 fluids in various industries. They are particularly, effectively pumping for High viscosity, High solids and Corrosive fluids.


Paper chemicals transfer pump

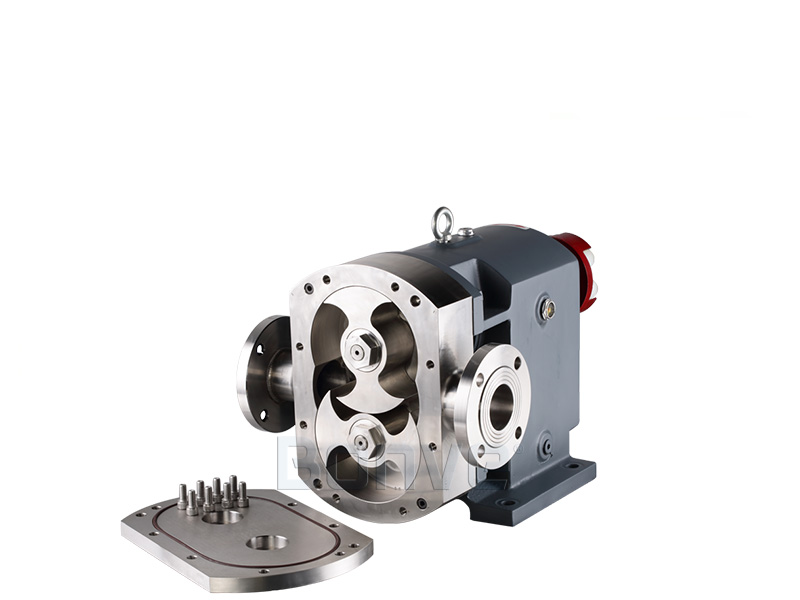

Bonve lobe pumps basically consist of two lobe rotors, which rotate synchronously driven by a pair of synchronous gears in the gearbox. The rotors are driven by the main shaft and sub-shaft to rotate in a synchronous reverse direction, which changes the pump capacity, builds up high vacuum and discharge pressure, thus an efficient pumping is formed. Gap is kept between the rotors and between the pump casing, no friction, long life, no damage, no physical and chemical reaction to the pumped products.


Pump structure diagram



Paper chemicals transfer pump


The bare shaft pump is mainly composed of rotor, chamber, mechanical seal, gear box, gear and driving shaft. All these core components are processed by CNC. Our manufacturing technology has reached the international advanced level!


Paper chemicals transfer pump


Special design



Seal Type: According to the different characteristics of the medium, you can have the Single-face balancing mechanical seal, Double-face water cooled mechanical seal, Heat resisting bellows mechanical seal, etc. Targeted seal used ensures zero leakage. All these types can be universally interchanged.


Paper chemicals transfer pump


Paper chemicals transfer pump


Paper chemicals transfer pump


Rotor type: According to the different medium, the rotor designed has Single-wing, Double-wing, Tri-lobe, Four-impeller and Multi-impeller type, and all of these rotors can be universally interchanged.


Paper chemicals transfer pump


Pump Structure: Bonve designs a variety of pump structure which has a universal type, V-feeding inlet, safety valve built-in, VFD controlled mobile, vertical installed, pulley driving and etc. Meet the different requirements of site installation.


Paper chemicals transfer pump


Bonve Rotary lobe pumps are particularly, effectively to pumping for High viscosity, High solids and Corrosive Paper chemicals. Successfully to solve the pumping problem.


Any interest to need a RFQ, contact cathy@bonvepumps.com

Below is a Selection guideline for your reference.


Liquid information

Your industry: __________ Liquid name:___________

Features:  Sanitary [    ]    Corrosive [    ]   Poisonous [    ]

Viscosity:_______cp  Density:_______  Temperature:_____℃  PH value:________

Solid content:_______    Max. size of particle:_______

Using condition

Capacity:  Max. required__________ L/H     Working required__________ L/H

Discharge pressure: Max. required__________Mpa    Working required__________ Mpa

Suction pressure: Max. required__________Mpa    Working required____________ Mpa

Delivery head required:____________  Vacuum:________ Mpa

Heating jacket required:   Yes [         ]   No. [         ]           Heating temp.:_____

Liquid inlet/outlet direction:  Horizontal [         ]   vertical [         ]

Pipe size:  Inlet___________   Outlet____________

Connection type required: Flange [          ]     Thread [         ] Clamp [         ]

Installation type: Fixed [         ]     Movable [        ]

Operating status: Continuous [         ]    Interruption [         ]

Liquid contact material:  SS304 [         ]    316[        ]   316L [       ]         Others________

Special request_____________________________________
