/Positive displacement rotary lobe pump with driving option

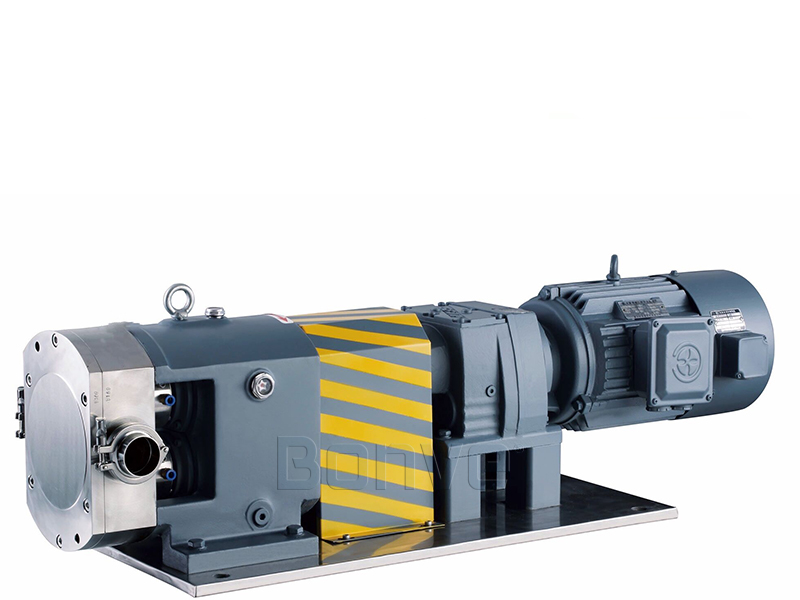

Positive displacement rotary lobe pump with driving option

Bonve positive displacement rotary lobe pumps, with different driving option, are usually required to transfer high viscous liquid products. Low rotation speed working, long-life service. Max. flow is upto 300m3/H. Consult us more to make a solution for your targeted application.
Inquiry Now
Products Details

Positive displacement rotary lobe pump features different driving type for your demands. The unique working principle of rotary lobe pump, combined with a powerful drive system, ensures that the pump can output a powerful drive torque at low speeds, ensuring continuous, no-retention transfer and ensuring that the transferred material is not damaged.


DRIVING TYPE


Step-less speed regulator +motor: The speed regulator changes the speed by manual adjustment, which is safe, reliable and infinitive flow adjustment. But the non-automatic adjustment is also troublesome. Speed regulating should be done in operation not in shut-off state.

Gear reducer + motor: the driving is easy with constant rotary speed of the rotor, which also leads to non adjustability of flow.

Frequency transformed motor + transducer: it realizes both automatic adjusting and infinitive adjustment of flow. It is highly automatic and has large torque in low speed.


WORKING PRINCIPLE FOR ROTARY LOBE PUMPS


Positive displacement rotary lobe pump


The even rotation of the rotor pair creates a vacuum on the priming side of the pump, which can be defined by the direction of rotation of the drive. This vacuum draws the liquid into the pump chamber. With further rotation, the pumped medium is conveyed past the pump wall into the pressure area. Up to six chamber charges are displaced with each drive rotation– depending on the rotor type. When the rotor is at a standstill, the pump seals off almost completely.



PUMP STRUCTURE ADVANTAGES


Positive displacement rotary lobe pump



PUMP TECHNICAL FEATURES


  • Displacement: positive displacement, Displacement is proportional to the speed. Max. Capacity is upto 300m3/h.
  • Discharge pressure: upto 1.2Mpa.
  • Suction capacity: Movable pumps can be used to pump canned medium, with intake vacuum of 0.08 Mpa.
  • Work efficiency: upto 90%
  • Special mediums to handle: high viscosity upto 1.5million cps, high solid mediums upto 60%, sensitive mediums.
  • Reversible running allowed: Forward suction, reversal flushing can be realized with pump's symmetric structure, reversible transportation direction.
  • Dry running: with Bonve's special design on mechanical seal, dry running can be realized.
  • Maintenance: Compact structure, little space occupation, no need to move pipe systems when maintain.
  • Wear-resisting: all the contact parts are made of stainless steel. Nearly no wearing parts.
  • Low shearing: Low working speed, gap is kept between the rotors and between the rotor and the pump body, no friction,long life.
  • Replacement: take replace of screw pumps, gear pumps, centrifugal pump,diaphragm pump etc.
  • Low cost: high working efficiency, low consumption, environmental friendly, low maintenance, long life.


PUMP TYPES

Positive displacement rotary lobe pump


PUMP TECHNICAL PARAMETERS


Model

Displace

-ment

(L/r)

Rotation

speed

(r/min)

Flow

rate

(M³/h)

Dis.

Pre.

(Mpa)

Electrical

power

(Kw)

Suc.

Pre.

(Mpa)

Dia. of inlet and

outlet (mm)

25BV6 /12-2

0.15

20-600

2

0.1-1.2

1.1-2.2

-0.095

25

40BV6 /12-5

0.32

20-550

5

0.1-1.2

1.5-4

-0.095

40

50BV6 /12-10

0.65

20-550

10

0.1-1.2

2.2-7.5

-0.095

50

65BV6 /12-20

1.74

20-550

20

0.1-1.2

4-15

-0.095

65

80BV6 /12-30

2.48

20-550

30

0.1-1.2

5.5-22

-0.095

80

80BV6 /12-40

3.65

20-550

40

0.1-1.2

7.5-30

-0.095

100

125BV6 /12-50

4.60

20-550

50

0.1-1.2

11-45

-0.095

125

125BV6 /12-70

6.10

20-550

70

0.1-1.2

15-55

-0.095

125

125BV6 /12-80

7.63

20-550

80

0.1-1.2

18.5-75

-0.095

125

150BV6 /12-120

11.56

20-420

120

0.1-1.2

22-90

-0.095

150

150BV6 /12-150

14.22

20-420

150

0.1-1.2

37-110

-0.095

150

200BV6 /12-200

18.10

20-420

200

0.1-1.2

45-132

-0.095

200

250BV6 /12-250

22.92

20-420

250

0.1-1.2

55-160

-0.095

250

300BV6 /12-300

32.00

20-420

300

0.1-1.2

75-200

-0.095

300


*This parameter list is tested with water as the medium. The parameters will vary from medium to medium. When you are selecting a model, please provide information about the medium.


PUMP SELECTION GUIDELINE


Liquid information

Your industry: __________ Liquid name:___________

Features:  Sanitary [    ]    Corrosive [    ]   Poisonous [    ]

Viscosity:_______cp  Density:_______  Temperature:_____℃  PH value:________

Solid content:_______    Max. size of particle:_______

Using condition

Capacity:  Max. required__________ L/H     Working required__________ L/H

Discharge pressure: Max. required__________Mpa    Working required__________ Mpa

Suction pressure: Max. required__________Mpa    Working required____________ Mpa

Delivery head required:____________  Vacuum:________ Mpa

Heating jacket required:   Yes [         ]   No. [         ]           Heating temp.:_____

Liquid inlet/outlet direction:  Horizontal [         ]   vertical [         ]

Pipe size:  Inlet___________   Outlet____________

Connection type required: Flange [          ]     Thread [         ] Clamp [         ]

Installation type: Fixed [         ]     Movable [        ]

Operating status: Continuous [         ]    Interruption [         ]

Liquid contact material:  SS304 [         ]    316[        ]   316L [       ]         Others________

Special request_____________________________________

Order qty.


* For a quick quote, please email cathy@bonvepumps.com to ask form and fill. Thank you for your support and love for Positive displacement rotary lobe pump.
