A personal-care contract manufacturer based in Sydney, Australia required a sanitary rotary lobe pump to transfer shampoo, conditioner and similar products from a mixer or Pallecon IBC into a 90 L filler hopper.
The process requires controlled flow, low shear and low aeration. The pump must also handle changing product viscosity while maintaining a hygienic product-contact path and adjustable speed for transfer and cleaning cycles.
Challenges When Pumping Shampoo and Conditioner
Shampoo and conditioner are viscous, formulation- sensitive products. Excessive pump speed can create unnecessary shear and air entrainment, leading to foaming and unstable filling. At higher viscosity, an unsuitable pump may also cause increased load, inconsistent flow or reduced transfer efficiency.
The customer required a pump that could transfer personal-care products from a mixer or Pallecon IBC to a 90 L filler hopper under flooded-suction conditions. The system needed to maintain a controlled flow while allowing the operator to reduce pump speed when the formulation required gentler handling.
The main requirements were:
1.Stable transfer across a broad viscosity range
2.Low-shear handling for shampoo and conditioner
3.Low aeration to help control foaming
4.Hygienic product-contact materials
5.Adjustable flow for filling and cleaning cycles
When Transfer Control Becomes the Process Bottleneck
For personal-care production, the transfer stage directly affects filling stability and product quality. The pump must not simply move the product; it must handle viscosity changes without excessive speed, aeration or unnecessary stress on the formulation.
A fixed-speed pump may provide limited flexibility when different shampoo or conditioner formulations are processed. The required flow can change with product viscosity, temperature and filling conditions. The pump therefore needs variable-speed control and a suction arrangement that supports consistent product intake.
Typical Applications
- Transferring emulsions (moisturizers, foundations) between mixing tanks and filling lines
- Dosing serums, essences, or oils into small-pack containers
- Handling particle-based products (facial scrubs, body polishes)
- Recirculating creams to maintain temperature and consistency during production
- Transferring high-viscosity waxes for lip balms or solid perfumes
- Built to meet the cosmetics industry’s strict standards for hygiene, performance, and product protection, BONVE lobe pump is the reliable choice for brands prioritizing quality, efficiency, and compliance.

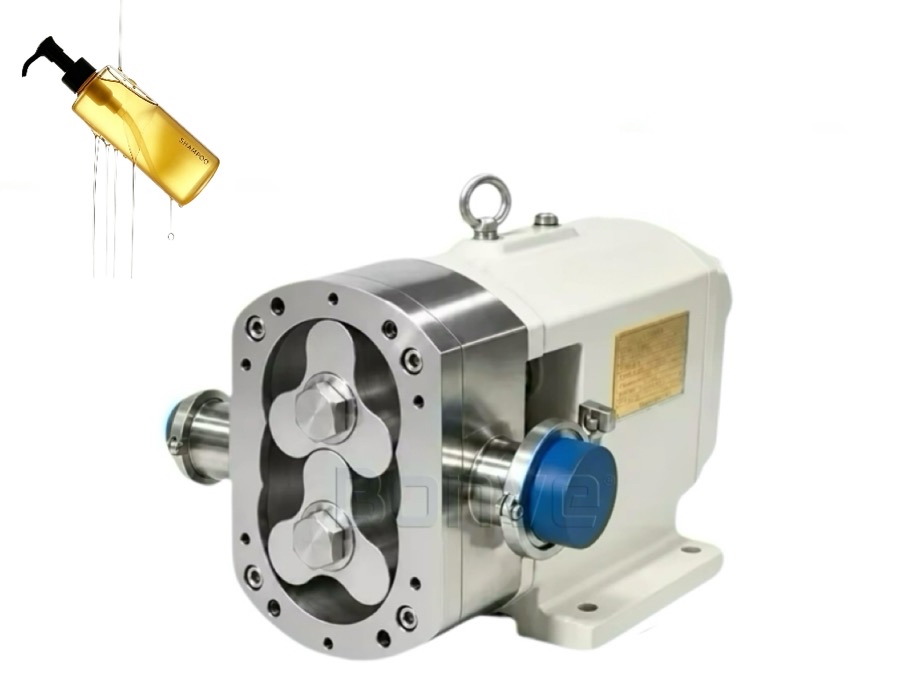

About Bonve Rotary Lobe Pump
Bonve Rotary Lobe Pump is A Reliable Choice for Fluid Transfer Across Industries.Whether it’s highly corrosive liquids in the food industry, viscous materials with solid particles in the cehmical sector, or fluids with diverse properties in other fields—Bonve Rotary Lobe Pumps handle them all with ease. Specifically designed for over 3,000 types of fluids, they enable efficient transfer of media with varying viscosities and solid contents, making them widely suitable for needs across different industries.
What’s more, Bonve remains committed to technological innovation. Today, its rotary lobe pumps have been upgraded to the 4th generation. The new-generation products feature further optimized core performance, which significantly extends the pump’s service life—helping you reduce equipment replacement costs and ensure stable production operations.
Interchangeable
· Interchangeable rotors, one pump multi-purpose.
· Targeted seal for specific application, ensure zero leakage.
Easy maintenance
· Compact structure, easy assembling and disassembling
· Maintenance in place, easy cleaning, CIPable and SIPable.
· Few wearing parts, low maintenance.
Long life
· All main parts proceed by CNC, high precision fabrication.
· No contact between the rotors, rotors and pump chamber.
· Six bearings with separate arrangement, high balance.
· Adjustable seal ring extends the shaft life.
· Axis key synchronous adjustment, no rotor collision problem.
Working Principle
Bonve lobe pumps basically consist of two lobe rotors, which rotate synchronously driven by a pair of synchronous gears in the gearbox. The rotors are driven by the main shaft and sub-shaft to rotate in a synchronous reverse direction, which changes the pump capacity, builds up high vacuum and discharge pressure, thus an efficient pumping is formed. Gap is kept between the rotors and between the pump casing, no friction, long life, no damage, no physical and chemical reaction to the pumped products.
Bi-wing rotor diagram
Tri-lobe rotors diagram

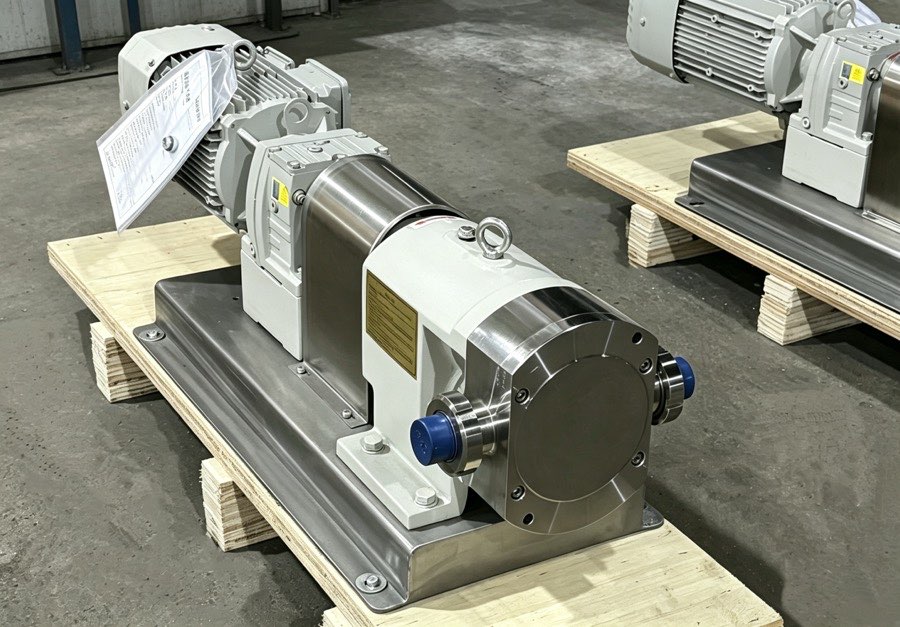

Main Parts of the Complete Pump
Bonve complete pumps are usually composed of bare shaft pump, coupling and its guard, geared motor and baseplae. With your order, bare shaft pump or complete pump is supplied.
Bare Shaft Pump Structure
Based on the port direction, we have the pump with horizontal port and vertical port to meet your site installation.
Structure Details
Complete Pump Types
Technical Parameters
|
Model |
Displace -ment |
RPM |
Flow |
Dis. Pre. |
Power |
Vacuum |
Port size |
Max viscosity |
|
|
(L/r) |
(r/min) |
(m³/h) |
(Mpa) |
(kW) |
(Mpa) |
(mm) |
(cp) |
|
25BV12-05 |
0.06 |
10-1000 |
0-0.5 |
0-1.2 |
0.37-1.1 |
-0.080 |
25 |
1,500,000 |
|
40BV12-2 |
0.15 |
10-1000 |
0-2 |
0-1.2 |
0.75-2.2 |
-0.080 |
40 |
1,500,000 |
|
50BV12-5 |
0.32 |
10-800 |
0-5 |
0-1.2 |
1.5-4 |
-0.085 |
50 |
1,500,000 |
|
65BV12-10 |
0.65 |
10-600 |
0-10 |
0-1.2 |
2.2-7.5 |
-0.085 |
65 |
1,500,000 |
|
80BV12-20 |
1.74 |
10-500 |
0-20 |
0-1.2 |
4-15 |
-0.095 |
80 |
1,500,000 |
|
90BV12-30 |
2.60 |
10-500 |
0-30 |
0-1.2 |
5.5-22 |
-0.095 |
100 |
1,500,000 |
|
100BV12-40 |
3.65 |
10-500 |
0-40 |
0-1.2 |
7.5-30 |
-0.095 |
100 |
1,500,000 |
|
125BV12-50 |
4.60 |
10-500 |
0-50 |
0-1.2 |
7.5-37 |
-0.095 |
125 |
1,500,000 |
|
140BV12-70 |
6.10 |
10-500 |
0-70 |
0-1.2 |
11-45 |
-0.095 |
150 |
1,500,000 |
|
150BV12-80 |
7.63 |
10-500 |
0-80 |
0-1.2 |
11-55 |
-0.095 |
150 |
1,500,000 |
|
200BV12-120 |
11.56 |
10-400 |
0-120 |
0-1.2 |
15-75 |
-0.095 |
200 |
1,500,000 |
|
250BV12-150 |
14.22 |
10-400 |
0-150 |
0-1.2 |
18.5-90 |
-0.095 |
250 |
1,500,000 |
|
300BV12-200 |
20.80 |
10-300 |
0-200 |
0-1.2 |
22-110 |
-0.095 |
300 |
1,500,000 |
|
350BV12-300 |
32.60 |
10-250 |
0-300 |
0-1.2 |
45-160 |
-0.095 |
350 |
1,500,000 |
|
400BV12-400 |
50.40 |
10-250 |
0-400 |
0-1.2 |
55-200 |
-0.095 |
400 |
1,500,000 |
Note:
1. Tested medium: water.
2. Speed, flow rate, electrical power and pressure will be varified according to different product properties.
Selection Guidelines
|
Your Industry |
|
||
|
About pump medium |
Name: |
||
|
Density (g/m³): |
|||
|
Viscosity (mPa.s): |
|||
|
Temperature (℃): |
|||
|
PH value: |
|||
|
Solid content (%): |
|||
|
Solid size (mm): |
|||
|
Suction side |
Pressure: Positive ( ) bar; Negtive ( ) bar |
How high (m): |
|
|
Suction pipe length (m): |
Diameter (mm): |
||
|
Bends (Pcs): |
T-piece (Pcs): |
Valves (Pcs): |
|
|
Discharge side |
Pressure (Mpa): |
||
|
Vertical delivery pipe length (m): Total delivery pipe length (m): |
Diameter (mm): |
||
|
Bends (Pcs): |
T-piece (Pcs): |
Valves (Pcs): |
|
|
Required flow rate (L/H) |
Operating flow: |
Max. flow: |
|
|
Pump material required |
SS304 ( ) SS316 ( ) SS316L ( ) Duplex stainless steel ( ) |
||
|
Motor required |
Phase: Single ( ) Three ( ) |
Voltage (V): |
Frequency (Hz): |
|
IP grade: |
Energy efficiency: |
Anti-explosive: |
|
|
Installation type |
Fixed ( ) |
Movable ( ) |
Fixed with adjusting feet ( ) |
|
Others |
|
||
About us
BONVE is a Chinese leading manufacturer in ROTARY LOBE PUMPS and HOMOGENIZER MIXERS. Providing its customers with customized pumping and mixing solutions and solving their problems during the production.
Bonve pumps and mixers are widely used in food, dairy, beverages, chemical, pulp&paper, soaps&detergents, pharmaceuticals, pesticide, coatings etc. By 2024, Bonve served 8,000+ customers in various industries and 100,000+ pumps running in the worldwide.
Time and again companies specify Bonve pumps as the "standard" equipment for their manufacturing processed. We are looking forward to be partner with you.
Certificate
Bonve ISO9001, ISO14001, ISO45001 certificates ensure quality consistency, compliance reliability, environmental responsibility, and operational efficiency, delivering trustworthy and sustainable partnerships for our clients.
With CE and FDA certificates, Bonve pumps are globally recognized. These certificates open doors to major markets, and they're a testament to our pumps excellence for you.
How customers' comments on Bonve Lobe pump
Comment on the pumps surface finish
We worked with an pump re-seller and they are very happy with Bonve lobe pump surface smooth finish and price.
If your team is dealing with similar pain points—whether it's subpar materials, inconsistent finishes, or non-compliant equipment—let's connect. We're here to deliver the same peace of mind and performance to your operations.
Feedback on Bonve lobe pump inner structure and running
Request a Technical Review
Are you transferring shampoo, conditioner or other viscous personal-care products from a mixer or IBC to a filling line?
Share your product viscosity, temperature, required flow rate, pressure and suction conditions with our engineers. We can review the sanitary rotary lobe pump, ABB VFD speed range and CIP/SIP requirements for your process.
Request a sanitary rotary lobe pump solution for your personal-care application.
FAQ
1. Warranty Policy
Standard: 15 months from manufacturing date.
Service: Free replacement parts within 3 workdays for non-human quality issues.
Extended warranty: Available upon request (e.g., for projects).
2. Operation Guidance
Provided with full English manual (installation, operation) and training files (maintenance, troubleshooting).
Remote technical support available if needed.
3. Shipping Arrangement
Partner with reliable forwarders; support sea (standard) or air freight.
Share your nearest port/airport for CIF quotes (cost + insurance + freight).
4. Payment Terms
TT (Telegraphic Transfer) or LC (Letter of Credit).
5. Delivery Time
Bare shaft pumps: 7 workdays (standard).
Complete pumps with motor: 20 workdays (standard).
6. Packaging
Solid fumigation-free plywood cases.
7. Pre-Order Spec Confirmation
We send a spec form (flow rate, head, etc.) for confirmation; technical drawings/photos available if needed.
8. Post-Warranty Support
Paid parts (preferential prices, 3-5 workdays delivery).
Paid on-site/remote technical help; customized annual maintenance plans for long-term clients.
9. Custom Solutions
Supported: Adjust material (stainless steel/cast iron), parameters (flow rate/head), or design (vertical/mobile).
Lead time: 20-30 workdays (varies by complexity); progress updates provided.
