Bonve Rotary Lobe pumps are commonly used in the soap and detergent industry for the transfer of liquid products, such as Dishwash Liquid, Dodecyl Benzene, Sulphonic Acid, Fabric Conditioner, Fatty Acid, Lye, Neat Soap, Sodium Lauryl, Ether Sulphate, Surfactants etc. Lobe pumps are positive displacement pumps that use rotating lobes to move liquid through the pump chamber. The lobes create a suction effect which draws liquid into the inlet port of the pump. As the lobes rotate, the liquid is forced through the pump and out the discharge port.
The use of lobe pumps in the soap and detergent industry is ideal because they are able to handle viscous and abrasive fluids. The lobes themselves are made of durable materials, such as stainless steel, that can withstand the harsh chemicals within the soap and detergent products. Additionally, lobe pumps are designed for sanitary use and are easily cleaned, making them a popular choice for the production of cosmetic and personal care products.
Lobe pumps are also used in the filling and packaging of soap and detergent products. They are frequently used to pump liquid soap and detergent into bottles, tubes, and other containers. With their ability to handle high volumes of product and maintain consistent flow rates, lobe pumps are an efficient and cost-effective solution for the soap and detergent industry.
How customers' comments on Bonve Lobe pump
Comment on the pumps surface finish
We worked with an pump re-seller and they are very happy with Bonve lobe pump surface smooth finish and price.
If your team is dealing with similar pain points—whether it's subpar materials, inconsistent finishes, or non-compliant equipment—let's connect. We're here to deliver the same peace of mind and performance to your operations.
Feedback on Bonve lobe pump inner structure and running
Certificate
Bonve ISO9001, ISO14001, ISO45001 certificates ensure quality consistency, compliance reliability, environmental responsibility, and operational efficiency, delivering trustworthy and sustainable partnerships for our clients.
With CE and FDA certificates, Bonve pumps are globally recognized. These certificates open doors to major markets, and they're a testament to our pumps excellence for you.
About Bonve Rotary Lobe Pump
Bonve Rotary Lobe Pump is A Reliable Choice for Fluid Transfer Across Industries.Whether it’s highly corrosive liquids in the food industry, viscous materials with solid particles in the cehmical sector, or fluids with diverse properties in other fields—Bonve Rotary Lobe Pumps handle them all with ease. Specifically designed for over 3,000 types of fluids, they enable efficient transfer of media with varying viscosities and solid contents, making them widely suitable for needs across different industries.
What’s more, Bonve remains committed to technological innovation. Today, its rotary lobe pumps have been upgraded to the 4th generation. The new-generation products feature further optimized core performance, which significantly extends the pump’s service life—helping you reduce equipment replacement costs and ensure stable production operations.
Interchangeable
· Interchangeable rotors, one pump multi-purpose.
· Targeted seal for specific application, ensure zero leakage.
Easy maintenance
· Compact structure, easy assembling and disassembling
· Maintenance in place, easy cleaning, CIPable and SIPable.
· Few wearing parts, low maintenance.
Long life
· All main parts proceed by CNC, high precision fabrication.
· No contact between the rotors, rotors and pump chamber.
· Six bearings with separate arrangement, high balance.
· Adjustable seal ring extends the shaft life.
· Axis key synchronous adjustment, no rotor collision problem.
Working Principle
Bonve lobe pumps basically consist of two lobe rotors, which rotate synchronously driven by a pair of synchronous gears in the gearbox. The rotors are driven by the main shaft and sub-shaft to rotate in a synchronous reverse direction, which changes the pump capacity, builds up high vacuum and discharge pressure, thus an efficient pumping is formed. Gap is kept between the rotors and between the pump casing, no friction, long life, no damage, no physical and chemical reaction to the pumped products.
Bi-wing rotor diagram
Tri-lobe rotors diagram
Main Parts of the Complete Pump

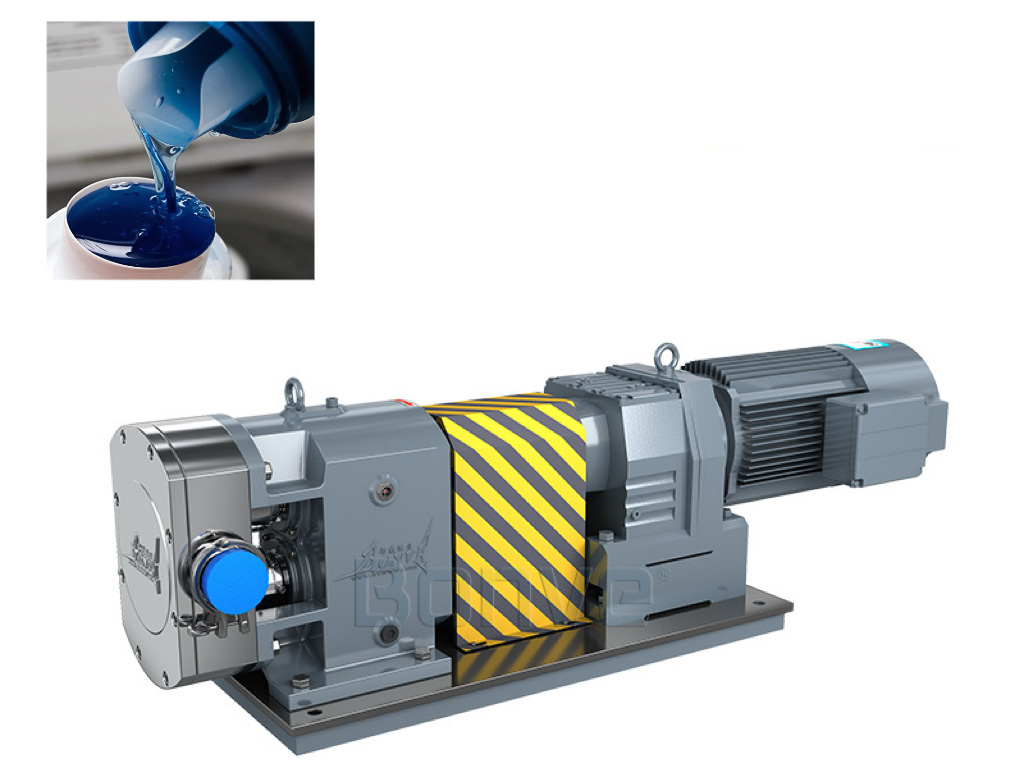

Bonve complete pumps are usually composed of bare shaft pump, coupling and its guard, geared motor and baseplae. With your order, bare shaft pump or complete pump is supplied.
Bare Shaft Pump Structure
Based on the port direction, we have the pump with horizontal port and vertical port to meet your site installation.
Structure Details
Complete Pump Types
Technical Parameters
|
Model |
Displace -ment |
RPM |
Flow |
Dis. Pre. |
Power |
Vacuum |
Port size |
Max viscosity |
|
|
(L/r) |
(r/min) |
(m³/h) |
(Mpa) |
(kW) |
(Mpa) |
(mm) |
(cp) |
|
25BV12-05 |
0.06 |
10-1000 |
0-0.5 |
0-1.2 |
0.37-1.1 |
-0.080 |
25 |
1,500,000 |
|
40BV12-2 |
0.15 |
10-1000 |
0-2 |
0-1.2 |
0.75-2.2 |
-0.080 |
40 |
1,500,000 |
|
50BV12-5 |
0.32 |
10-800 |
0-5 |
0-1.2 |
1.5-4 |
-0.085 |
50 |
1,500,000 |
|
65BV12-10 |
0.65 |
10-600 |
0-10 |
0-1.2 |
2.2-7.5 |
-0.085 |
65 |
1,500,000 |
|
80BV12-20 |
1.74 |
10-500 |
0-20 |
0-1.2 |
4-15 |
-0.095 |
80 |
1,500,000 |
|
90BV12-30 |
2.60 |
10-500 |
0-30 |
0-1.2 |
5.5-22 |
-0.095 |
100 |
1,500,000 |
|
100BV12-40 |
3.65 |
10-500 |
0-40 |
0-1.2 |
7.5-30 |
-0.095 |
100 |
1,500,000 |
|
125BV12-50 |
4.60 |
10-500 |
0-50 |
0-1.2 |
7.5-37 |
-0.095 |
125 |
1,500,000 |
|
140BV12-70 |
6.10 |
10-500 |
0-70 |
0-1.2 |
11-45 |
-0.095 |
150 |
1,500,000 |
|
150BV12-80 |
7.63 |
10-500 |
0-80 |
0-1.2 |
11-55 |
-0.095 |
150 |
1,500,000 |
|
200BV12-120 |
11.56 |
10-400 |
0-120 |
0-1.2 |
15-75 |
-0.095 |
200 |
1,500,000 |
|
250BV12-150 |
14.22 |
10-400 |
0-150 |
0-1.2 |
18.5-90 |
-0.095 |
250 |
1,500,000 |
|
300BV12-200 |
20.80 |
10-300 |
0-200 |
0-1.2 |
22-110 |
-0.095 |
300 |
1,500,000 |
|
350BV12-300 |
32.60 |
10-250 |
0-300 |
0-1.2 |
45-160 |
-0.095 |
350 |
1,500,000 |
|
400BV12-400 |
50.40 |
10-250 |
0-400 |
0-1.2 |
55-200 |
-0.095 |
400 |
1,500,000 |
Note:
1. Tested medium: water.
2. Speed, flow rate, electrical power and pressure will be varified according to different product properties.
Selection Guidelines
|
Your Industry |
|
||
|
About pump medium |
Name: |
||
|
Density (g/m³): |
|||
|
Viscosity (mPa.s): |
|||
|
Temperature (℃): |
|||
|
PH value: |
|||
|
Solid content (%): |
|||
|
Solid size (mm): |
|||
|
Suction side |
Pressure: Positive ( ) bar; Negtive ( ) bar |
How high (m): |
|
|
Suction pipe length (m): |
Diameter (mm): |
||
|
Bends (Pcs): |
T-piece (Pcs): |
Valves (Pcs): |
|
|
Discharge side |
Pressure (Mpa): |
||
|
Vertical delivery pipe length (m): Total delivery pipe length (m): |
Diameter (mm): |
||
|
Bends (Pcs): |
T-piece (Pcs): |
Valves (Pcs): |
|
|
Required flow rate (L/H) |
Operating flow: |
Max. flow: |
|
|
Pump material required |
SS304 ( ) SS316 ( ) SS316L ( ) Duplex stainless steel ( ) |
||
|
Motor required |
Phase: Single ( ) Three ( ) |
Voltage (V): |
Frequency (Hz): |
|
IP grade: |
Energy efficiency: |
Anti-explosive: |
|
|
Installation type |
Fixed ( ) |
Movable ( ) |
Fixed with adjusting feet ( ) |
|
Others |
|
||
