Why Bonve rotor pumps for surfactants?
Bonve stainless steel rotor pumps are effectively to transfer surfactants, which includes fatty acid, sulfonic acid, AES, LAS, AOS, L12, MES, SLES, etc. Surfactants temperature has big influence on their viscosity during the production and transportation. Surfactants have high acidity and alkalinity. Bonve rotor pumps adopts high grade staniless steel material, sealing structure and rotor type according to the characteristics of the surfactants to ensure effective delivery.
How the pump works?
The sanitary rotor pumps adopt two lobe rotors, which rotate synchronously driven by a pair of synchronous gear in the gearbox. The rotors are driven by the main shaft and sub-shaft to rotate in a synchronous reverse direction, which changes the pump capacity, builds up high vacuum and discharge pressure, thus an efficient pumping is formed.
- Bi-wing rotors diagram
-

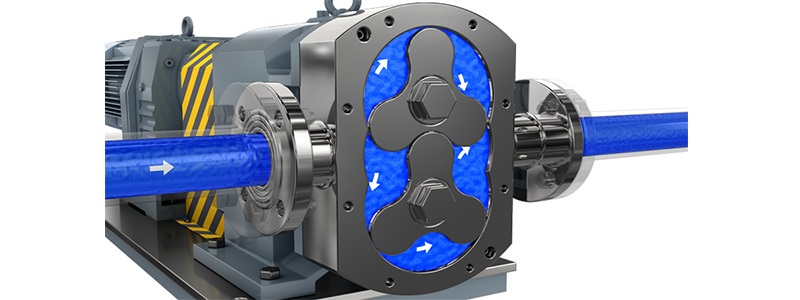

- Tri-wing rotors diagram
-

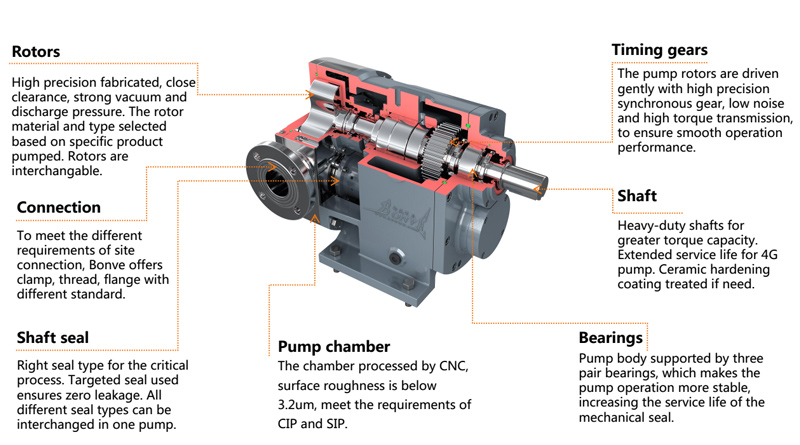

What the pump structure advantage?
Pump Technical Parameters
|
Model |
Displacement |
RPM |
NormalFlow |
Dis.Pre. |
Power |
Port size(mm) |
|
|
|
(L/r) |
(r/min) |
(M³/h) |
(Mpa) |
(kW) |
Stand. |
Enlarged |
|
25BV12-05 |
0.06 |
10-1000 |
0-0.5 |
0-1.2 |
0.37-1.1 |
15 |
25 |
|
40BV12-2 |
0.15 |
10-1000 |
0-2 |
0-1.2 |
0.75-2.2 |
25 |
40 |
|
50BV12-5 |
0.32 |
10-800 |
0-5 |
0-1.2 |
1.5-4 |
40 |
50 |
|
65BV12-10 |
0.65 |
10-600 |
0-10 |
0-1.2 |
2.2-7.5 |
50 |
65 |
|
80BV12-20 |
1.74 |
10-500 |
0-20 |
0-1.2 |
4-15 |
65 |
80 |
|
90BV12-30 |
2.60 |
10-500 |
0-30 |
0-1.2 |
5.5-22 |
80 |
100 |
|
100BV12-40 |
3.65 |
10-500 |
0-40 |
0-1.2 |
7.5-30 |
80 |
100 |
|
125BV12-50 |
4.60 |
10-500 |
0-50 |
0-1.2 |
7.5-37 |
100 |
125 |
|
140BV12-70 |
6.10 |
10-500 |
0-70 |
0-1.2 |
11-45 |
125 |
150 |
|
150BV12-80 |
7.63 |
10-500 |
0-80 |
0-1.2 |
11-55 |
125 |
150 |
|
200BV12-120 |
11.56 |
10-400 |
0-120 |
0-1.2 |
15-75 |
150 |
200 |
|
250BV12-150 |
14.22 |
10-400 |
0-150 |
0-1.2 |
18.5-90 |
150 |
250 |
|
300BV12-200 |
20.80 |
10-300 |
0-200 |
0-1.2 |
22-110 |
200 |
300 |
|
350BV12-300 |
32.60 |
10-250 |
0-300 |
0-1.2 |
45-160 |
300 |
350 |
|
400BV12-350 |
50.40 |
10-250 |
0-350 |
0-1.2 |
55-200 |
350 |
400 |
How to choose the pump?
Liquid information
Your industry: __________ Liquid name:___________
Features: Sanitary [ ] Corrosive [ ] Poisonous [ ]
Viscosity:_______cp Density:_______ Temperature:_____℃ PH value:________
Solid content:_______ Max. size of particle:_______
Using condition
Capacity: Max. required__________ L/H Working required__________ L/H
Discharge pressure: Max. required__________Mpa Working required__________ Mpa
Suction pressure: Max. required__________Mpa Working required____________ Mpa
Delivery head required:____________ Vacuum:________ Mpa
Heating jacket required: Yes [ ] No. [ ] Heating temp.:_____℃
Liquid inlet/outlet direction: Horizontal [ ] vertical [ ]
Pipe size: Inlet___________ Outlet____________
Connection type required: Flange [ ] Thread [ ] Clamp [ ]
Installation type: Fixed [ ] Movable [ ]
Operating status: Continuous [ ] Interruption [ ]
Liquid contact material: SS304 [ ] 316[ ] 316L [ ] Others________
Special request_____________________________________
Order qty.
* For a quick quote, please email cathy@bonvepumps.com to ask form and fill. As a professional manufacturer of Bonve stainless steel rotor pumps more than 18 years experience, hope we can work with you and solve your pumping problem.
